Differential expression analysis in Platt

Running DEGs over a graph

Finding regulatory genes with fate-restricted patterns may help identify new genetic requirements of cell types. For example, “terminal selector” and “multilineage priming (MLP)” genes might activate specific fates, genes expressed in progenitors only might be required for maintaining the progenitor states, and genes excluded from certain fates might repress that fate 1-4. We can systematically identify these patterns by computing differential expression across our graphs and then classify these patterns based on a set of defined rules.

See an explanation of gene patterns here:

The function compare_genes_within_state_graph():

• ccs- a Hooke cell_count_set object
• graph - an igraph object
• gene_ids - a list of genes to subset the analysis to
• cores - number of cores

pf_graph_degs = compare_genes_over_graph(pf_ccs,
                                         pf_cell_state_graph@graph,
                                         cores = 4)

The output of this table will look like this:

cell_state	gene_class_scores
pectoral fin condensate	<tibble [14,899 × 5]>
pectoral fin distal mesenchyme	<tibble [14,899 × 5]>
pectoral fin central cells	<tibble [14,899 × 5]>
pectoral fin bud mesoderm	<tibble [14,899 × 5]>
pectoral fin cleithrum	<tibble [14,899 × 5]>
pectoral fin bud progenitor	<tibble [14,899 × 5]>

To unnest the dataframe:

pf_graph_degs %>%
  tidyr::unnest(gene_class_scores) %>%
  filter(pattern_activity_score > 1) %>%
  filter(interpretation == "Selectively activated")

cell_state	gene_id	data	interpretation	pattern_activity_score	gene_short_name
pectoral fin condensate	ENSDARG000000062…	<tibble>	Selectively activated	1.02	ell2
pectoral fin condensate	ENSDARG000000099…	<tibble>	Selectively activated	2.16	slc38a5a
pectoral fin condensate	ENSDARG000000106…	<tibble>	Selectively activated	1.86	clic2
pectoral fin condensate	ENSDARG000000116…	<tibble>	Selectively activated	1.19	slc26a2
pectoral fin condensate	ENSDARG000000124…	<tibble>	Selectively activated	3.77	col11a2
pectoral fin condensate	ENSDARG000000309…	<tibble>	Selectively activated	2.00	mybl1

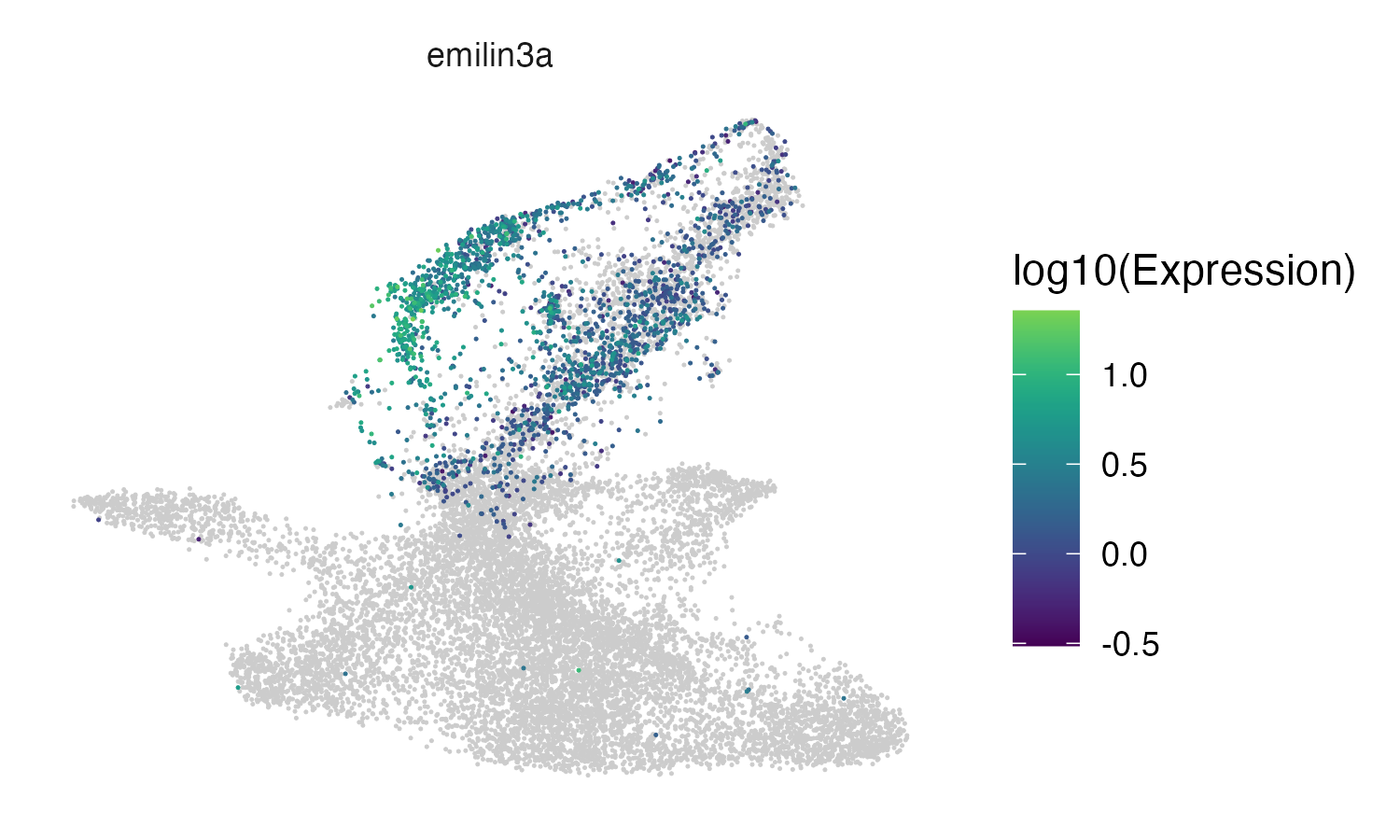

We can check some of these markers by plotting them either in the UMAP space:

plot_cells(pf_ccs@cds, genes = c("emilin3a"))

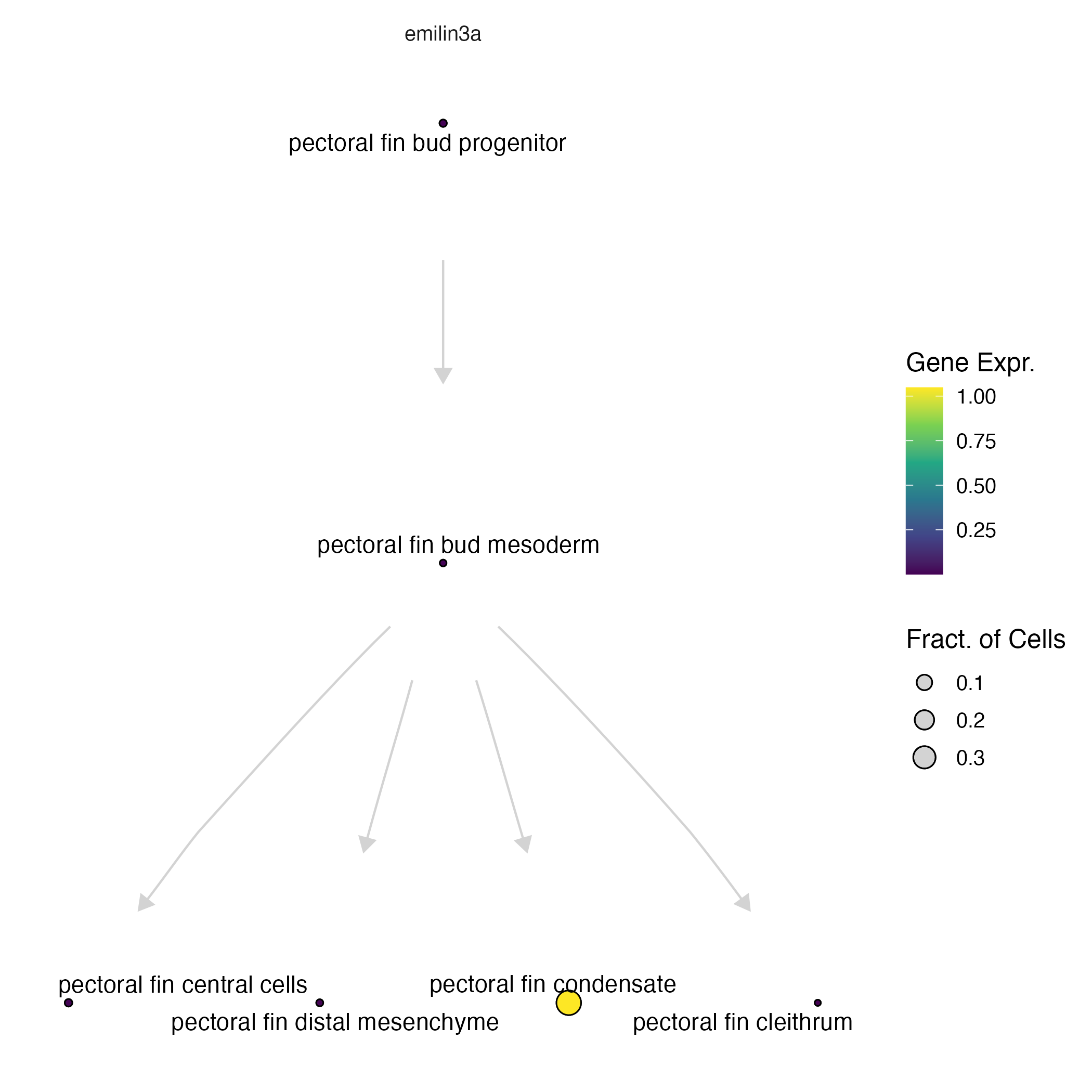

... or on our platt graph:

plot_gene_expr(pf_cell_state_graph, genes = c("emilin3a"))

For more information about plotting on a Platt graph, see our plotting page.

Running DEGs within each perturbation

The function compare_genes_within_state_graph():

• ccs- a Hooke cell_count_set object
• perturbation_col - column name of the perturbations
• control_ids - list of control ids
• cell_groups - subset of cell groups to run DEGs on
• perturbations - defaults to perturbation
• cores

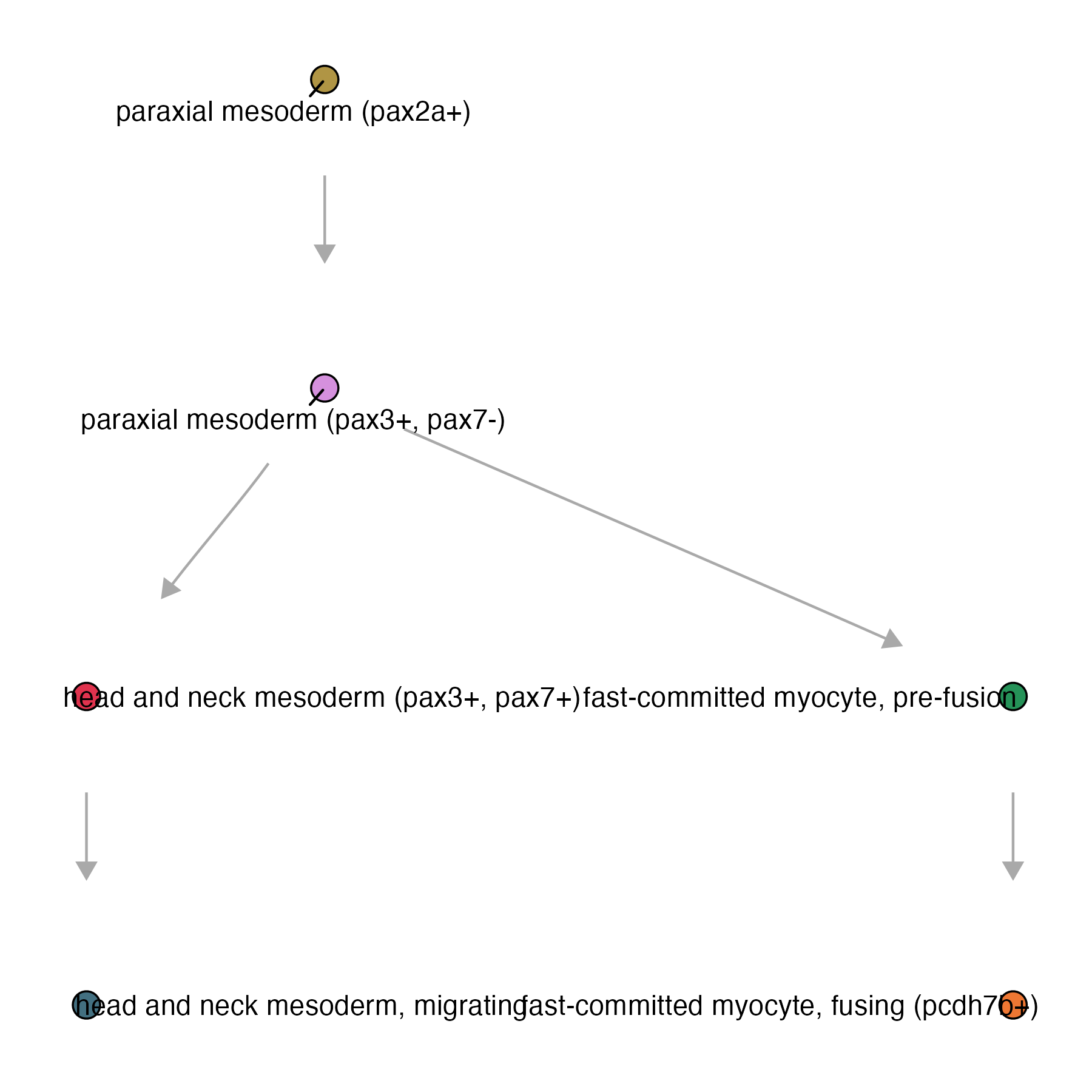

For this example we will be using a subset of the skeletal muscle, for which we have 510,093 reference cells:

platt:::plot_annotations(muscle_state_graph, plot_labels = T, node_size = 4)

genes_within_cell_state = compare_genes_within_state_graph(ccs,
                                                           perturbation_col = "gene_target",
                                                           control_ids = c("ctrl-inj"),
                                                           perturbations = c("tbx16", "tbx16-msgn1", "tbx16-tbx16l"),
                                                           cores = 6)

genes_within_cell_state %>% head()

cell_group	genes_within_cell_group
paraxial mesoderm (tbx16+)	<tibble [33,189 × 15]>
paraxial mesoderm (pax3+, pax7-)	<tibble [33,189 × 15]>
fast-committed myocyte, pre-fusion	<tibble [33,189 × 15]>
fast-committed myocyte, fusing (pcdh7b+)	<tibble [33,189 × 15]>
head and neck mesoderm (pax3+, pax7+)	<tibble [33,189 × 15]>
head and neck mesoderm, migrating	<tibble [33,189 × 15]>

The results are nested by cell type. To look at a specific knockout term, you can unnest the dataframe and filter:

genes_within_cell_state = genes_within_cell_state %>% tidyr::unnest(genes_within_cell_group)
genes_within_cell_state %>% filter(term == "tbx16,msgn1") %>% tidyr::unnest(perturb_effects)

term	mean_log_sf	ctrl_log_sf	detected_genes	ctrl_detected_genes	id	perturb_to_ctrl_raw_lfc	perturb_to_ctrl_raw_lfc_se	perturb_to_ctrl_raw_p_value	perturb_to_ctrl_shrunken_lfc	perturb_to_ctrl_shrunken_lfc_se	perturb_to_ctrl_p_value	effect_skew	log_mean_expression	coefficient_mode	cell_group
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000002	-0.08138754	0.8304913	0.46096644	-0.007389409	0.25044809	0.7034408	-2.799458	-5.560817	-0.02203216	paraxial mesoderm (tbx16+)
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000018	0.88256012	0.3981750	0.01332819	0.314546764	0.34338591	0.3002582	-2.799458	-3.133384	-0.02203216	paraxial mesoderm (tbx16+)
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000019	0.04861553	0.2461786	0.42172566	0.014027290	0.13301079	0.7339044	-2.799458	-2.514816	-0.02203216	paraxial mesoderm (tbx16+)
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000068	0.03918378	0.3448263	0.45476421	0.008933895	0.16490703	0.7267108	-2.799458	-3.313506	-0.02203216	paraxial mesoderm (tbx16+)
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000069	0.22385107	0.2309466	0.16620371	0.076271650	0.15154521	0.5804131	-2.799458	-2.281009	-0.02203216	paraxial mesoderm (tbx16+)
tbx16,msgn1	3.955547	2.302981	6042.273	2235.279	ENSDARG00000000086	-0.04488597	0.1612511	0.39036776	-0.014688242	0.09378365	0.7574802	-2.799458	-1.528009	-0.02203216	paraxial mesoderm (tbx16+)

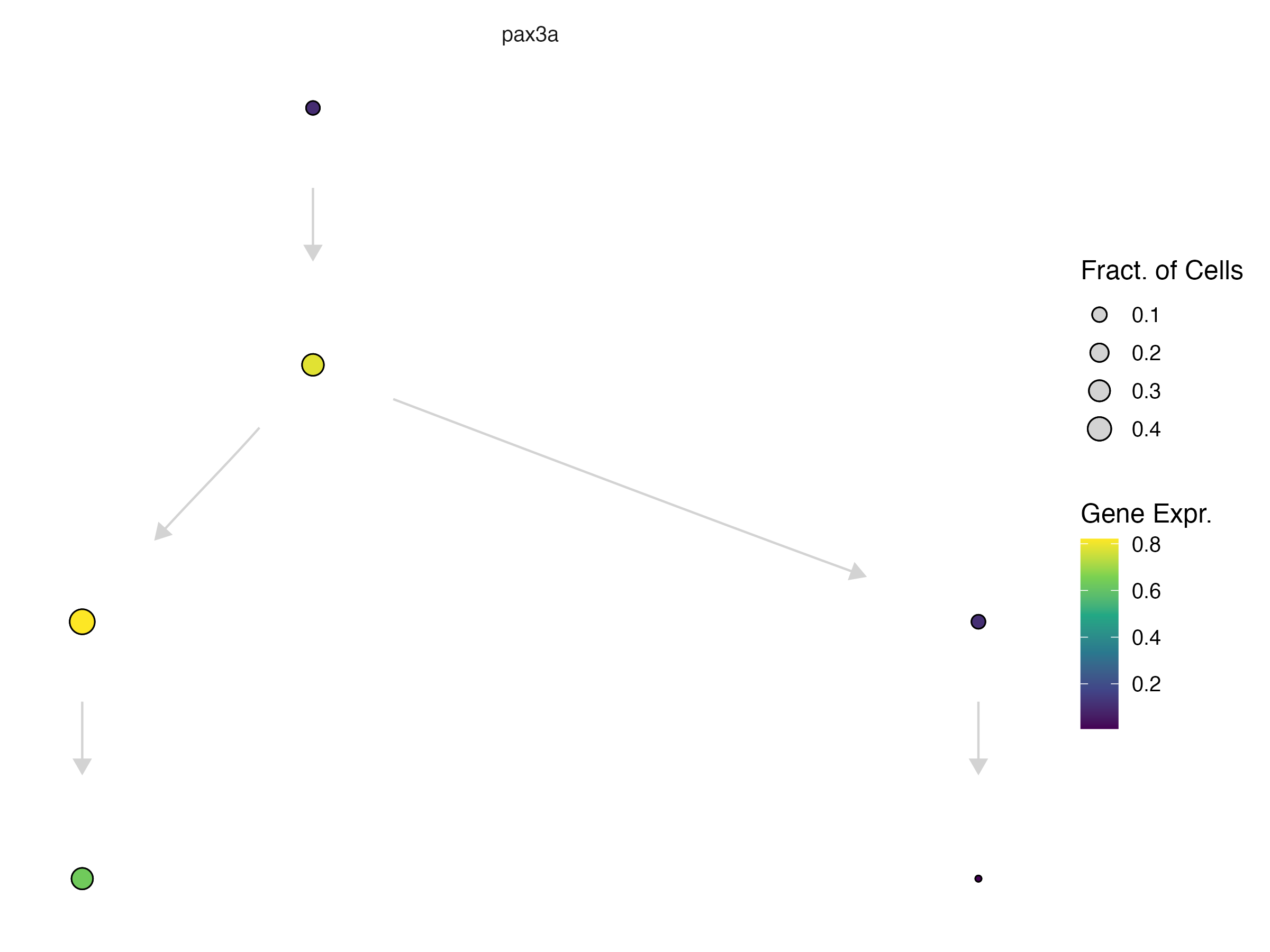

Pax3a is a MLP gene observed in paraxial mesoderm progenitors as they commit to either head and neck mesoderm or fast muscle fates.

plot_gene_expr(muscle_state_graph, genes = c("pax3a"), node_size = 4, plot_labels = F) +
  theme(legend.position = "right")

In the tbx16-msgn1 crispants, all of which fail to generate skeletal muscle properly, pax3a, a key regulator of myogenesis was differentially expressed in myogenic progenitors.

term	cell_group	gene_short_name	perturb_to_ctrl_shrunken_lfc	perturb_to_ctrl_p_value
tbx16,msgn1	paraxial mesoderm (tbx16+)	pax3a	-1.0584180	1.397403e-08
tbx16,msgn1	paraxial mesoderm (pax3+, pax7-)	pax3a	-0.7609017	2.913705e-05

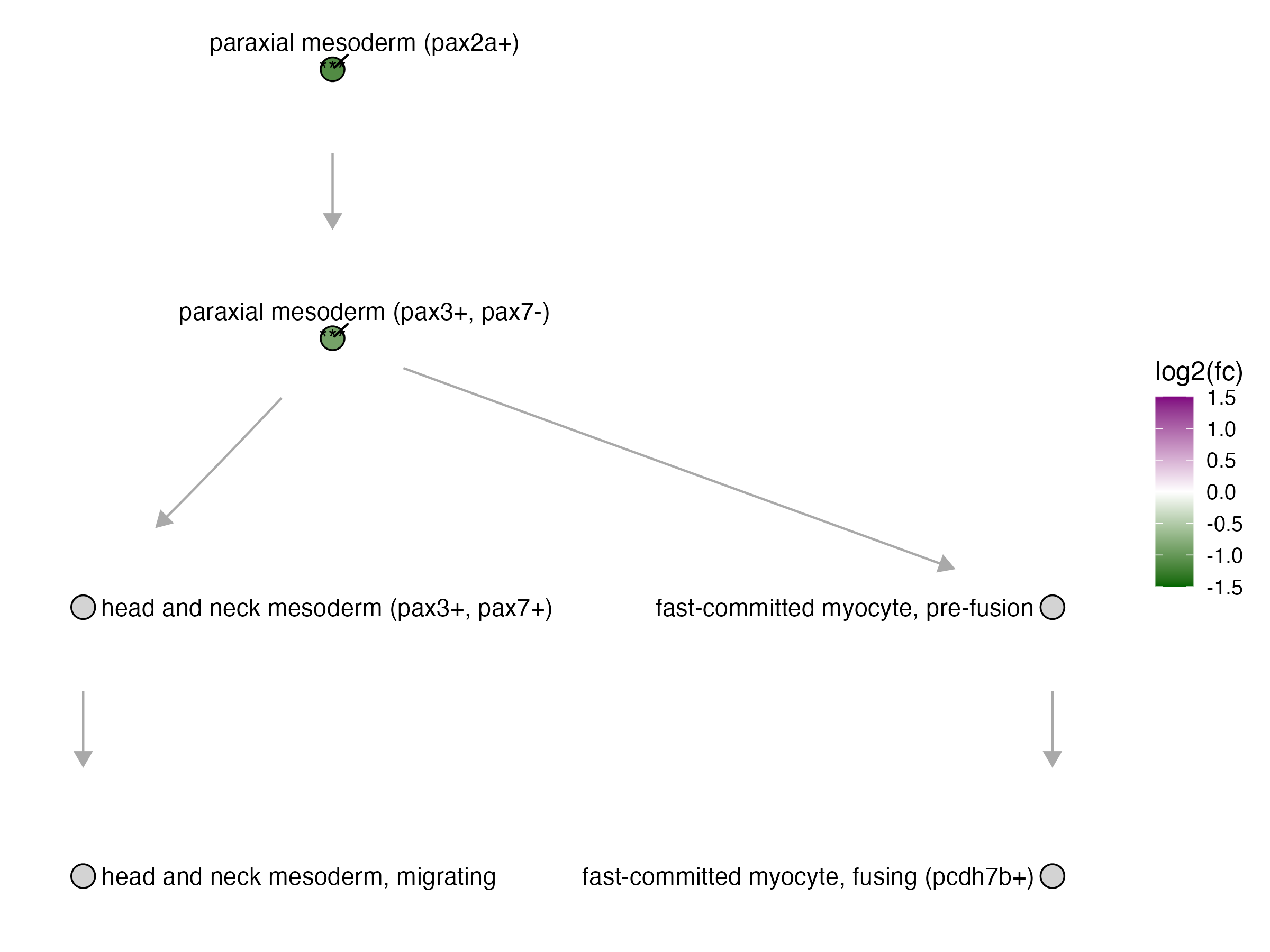

... we can plot the DEG fold change of pax3a in the tbx16-msgn1 mutant on the platt graph:

plot_degs(muscle_state_graph, tbx16_degs %>%
            filter(term == "tbx16,msgn1", gene_short_name == "pax3a"), node_size = 4.5)

For more information about plotting on a Platt graph, see our plotting page.

References

1. Hobert, O. Terminal selectors of neuronal identity. Curr. Top. Dev. Biol. 116, 455–475 (2016).
2. Laslo, P. et al. Multilineage transcriptional priming and determination of alternate hematopoietic cell fates. Cell 126, 755–766 (2006).
3. Qiu, C. et al. Systematic reconstruction of cellular trajectories across mouse embryogenesis. Nat. Genet. 54, 328–341 (2022).
4. Packer, J. S. et al. A lineage-resolved molecular atlas of C. elegans embryogenesis at single-cell resolution. Science 365, (2019).
